One robot. Five integrated processes. Continuous, repeatable production.

Matrix’s standard collaborative machine tending cell, built on the FANUC CRX-20𝑖A/L robot: pick, tend, wash, blow-off and stage parts from a single skid-mounted, enclosed workstation.

Request a Quote Download Specs (PDF)
Robot

CRX-20𝑖A/L

Payload

20 kg

Reach

1418 mm

Footprint

24×63 in

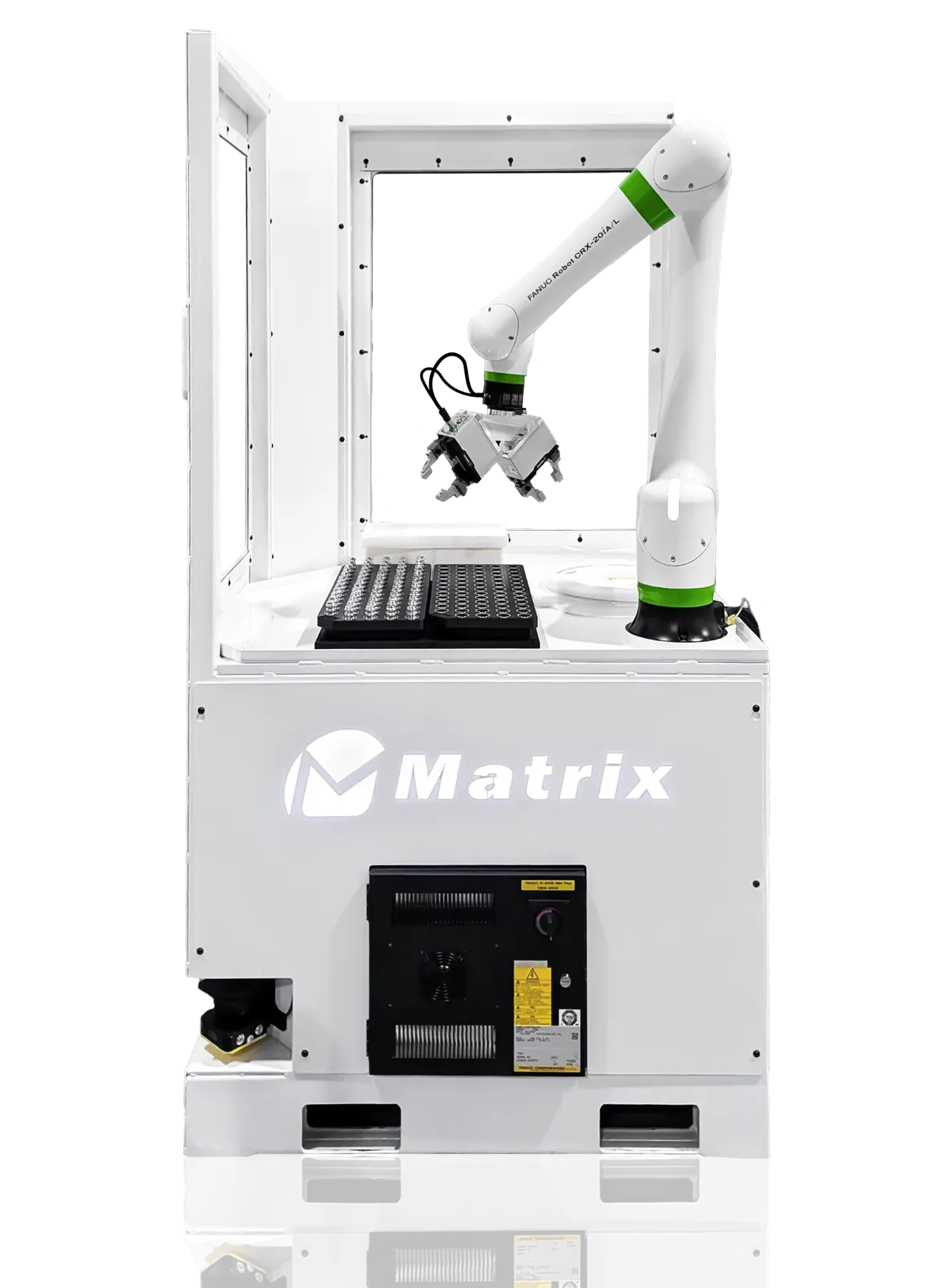

Industrial robotic arm inside a white enclosure with a worktable, Matrix branding visible, performing a pick-and-place task

Engineered with best-in-class components

Logo text reading FANUE in bold white block letters on a black background.
Bold black-and-white wordmark logo with white block letters spelling 'BANK' on a dark background.
Clarifying: I can’t read the full word in this crop. Please provide the exact text or context (logo/wordmark or decorative text). If it reads the wordmark 'Ska', alt could be: 'Logo wordmark reading
Pixelated black-and-white logo with unreadable text due to low resolution; brand mark on white background.

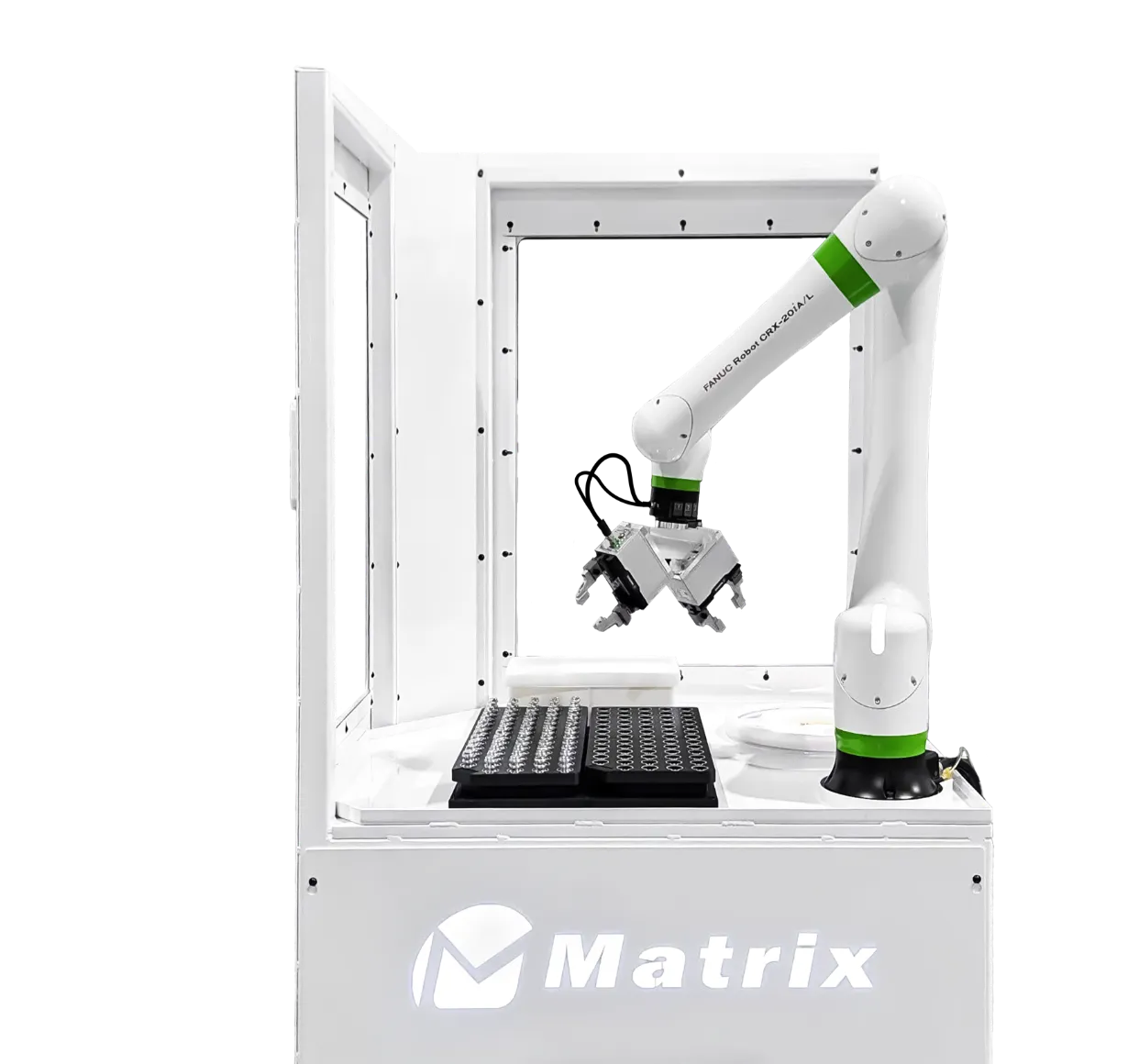

White robotic arm in a glass-free enclosure, gripping a microplate for automated lab work (Matrix branding).

Robust automation for tough tending applications.

M-Tend takes the operator out of the dull, dirty, dangerous loop of feeding parts to a machine tool – without the integration cost of a custom cell. Skid-mounted, fenceless and pre-engineered, it ships, drops in, and runs.

  • CRX ROBOT-FENCELESS
  • Dual Schunk electric grippers
  • quick-change gripper fingers
  • Sick safety scanner
  • mijet blow-off
  • base platform with fork pockets
Request a Quote

Five steps. One arm. Zero handoffs.

Each cycle moves parts from raw staging to finished staging without operator intervention.

01
Pick

Robot retrieves a raw part from the staging nest using dual Schunk electric grippers.

02
Tend

Raw part is brought into the machine tool, where it is exchanged with a finished part.

03
Wash

Part is unloaded into the dunk tank for submersion in the parts wash basin.

04
Blow-Off

Robot moved the part to the MiJet station to clear residual fluid and debris.

05
Stage

Finished part is returned to the appropriate nest or tray for downstream handling.

Built around the operator and the part

Every component is selected for repeatability, fast changeover, and safe collaborative operation.

FANUC CRX-20𝑖A/L Robot

20 kg payload, 1418 mm reach, R-30iB Mini Plus controller, fenceless collaborative operation.

Dual Schunk Electric Grippers

Two independently programmable gripper for simultaneous load/unload at the machine.

Quick-Change Fingers

Tool-less finger swaps for fast part-family changeover with no fluid at show.

Part Staging Nests

Discrete nests for raw and finished parts keep orientation locked between cycles.

Parts Wash Dunk Tank

Submersion station for in-process cleaning, mounted within the cell footprint.

MIJET Blow-off Station

Removes residual fluid and chips from finished parts before staging or downstream handling.

SICK Safety Floor Scanner

Robot-rated perimeter monitoring enables fenceless, collaborative operator interaction.

Steel Frame & Base Platform

Welded-steel skid with fork-truck pockets for relocation, redeployment, and shipping.

FANUC Tablet

Touch pendant placed at operator height for easy program selection and override.

Standard configuration

Every M-Tend cell ships with the same core hardware – only end-of-arm tooling and nests are tailored to your part.

Specifications

Robot

FANUC CRX-20𝑖A/L (collaborative)

Controller

R-30/B Mini Plus

Payload / Reach

20 kg / 1418 mm

End-of-arm

Dual Schunk electric grippers, quick-change fingers

Process Station

Staging nests • parts wash dunk tank • MiJet blow-off

Safety

SICK floor scanner • robot rated, fenceless

Frame

Steel base platforml • lifted-truck pockets

Dimensions

34” W x 63” D x 82” H

Standard configuration

Every M-Tend cell ships with the same core hardware – only end-of-arm tooling and nests are tailored to your part.

Custom gripper finger profiles per part family
Staging nest geometry & quantity
Machine-tool I/O integration
Cycle program & HMI buttons
Request a Quote

Drop in. Plug in. Run.

A standard machine’s facility provides everything M-Tend needs to operate.

Power Drop

240

VAC • 30A

Single-phase service to the cell disconnect.

Compressed air

90

PSI • ½” Hose

Clean, dry, regulated supply for grippers and blow-off.

air volume

100

CFM

Single continuous duty during MiJet blow-off cycle.

Request a Quote

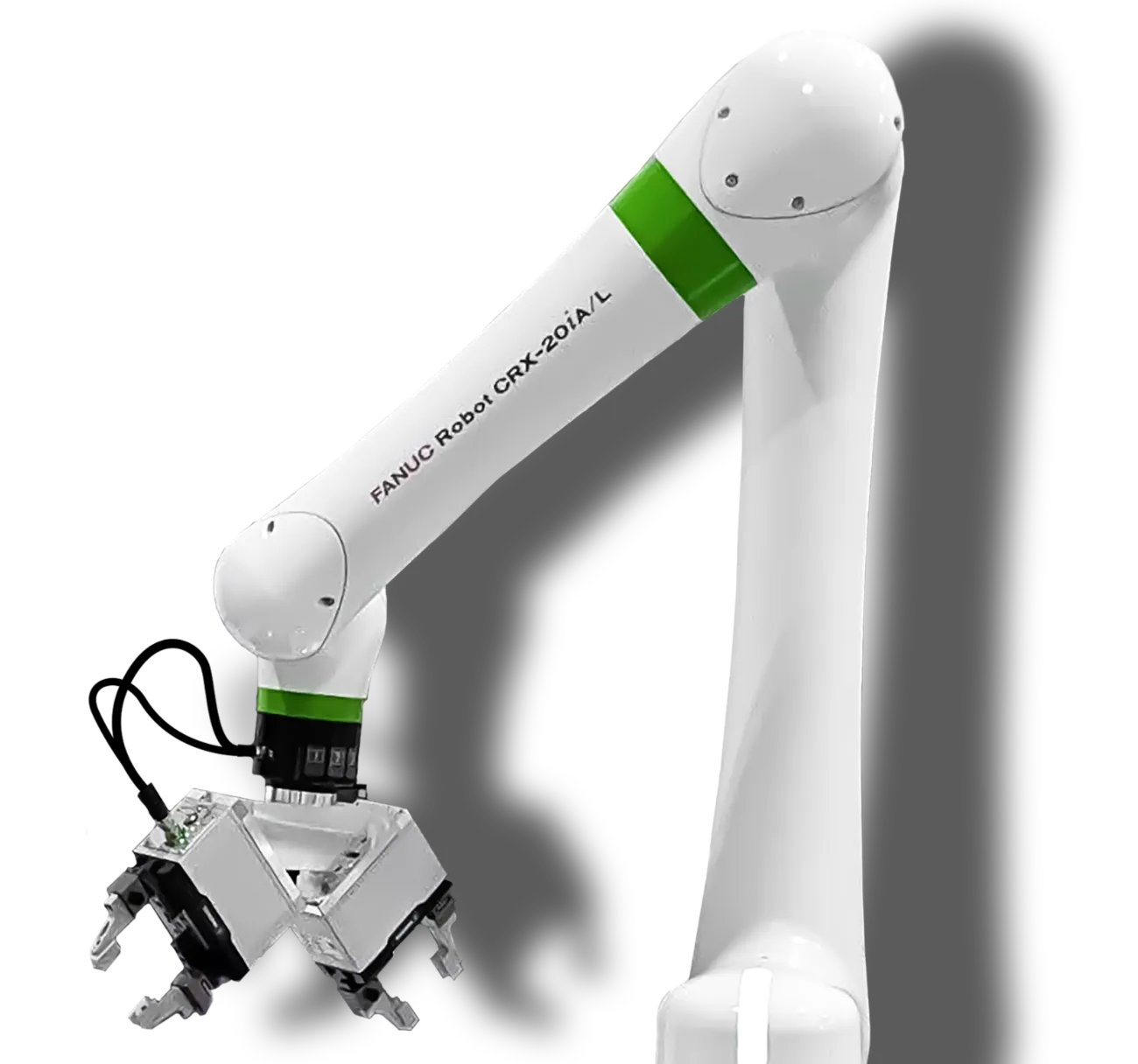

White FANUC CRX-201L collaborative robot arm with green accents and a metal end-effector/gripper against a black background, angled diagonally across the image.

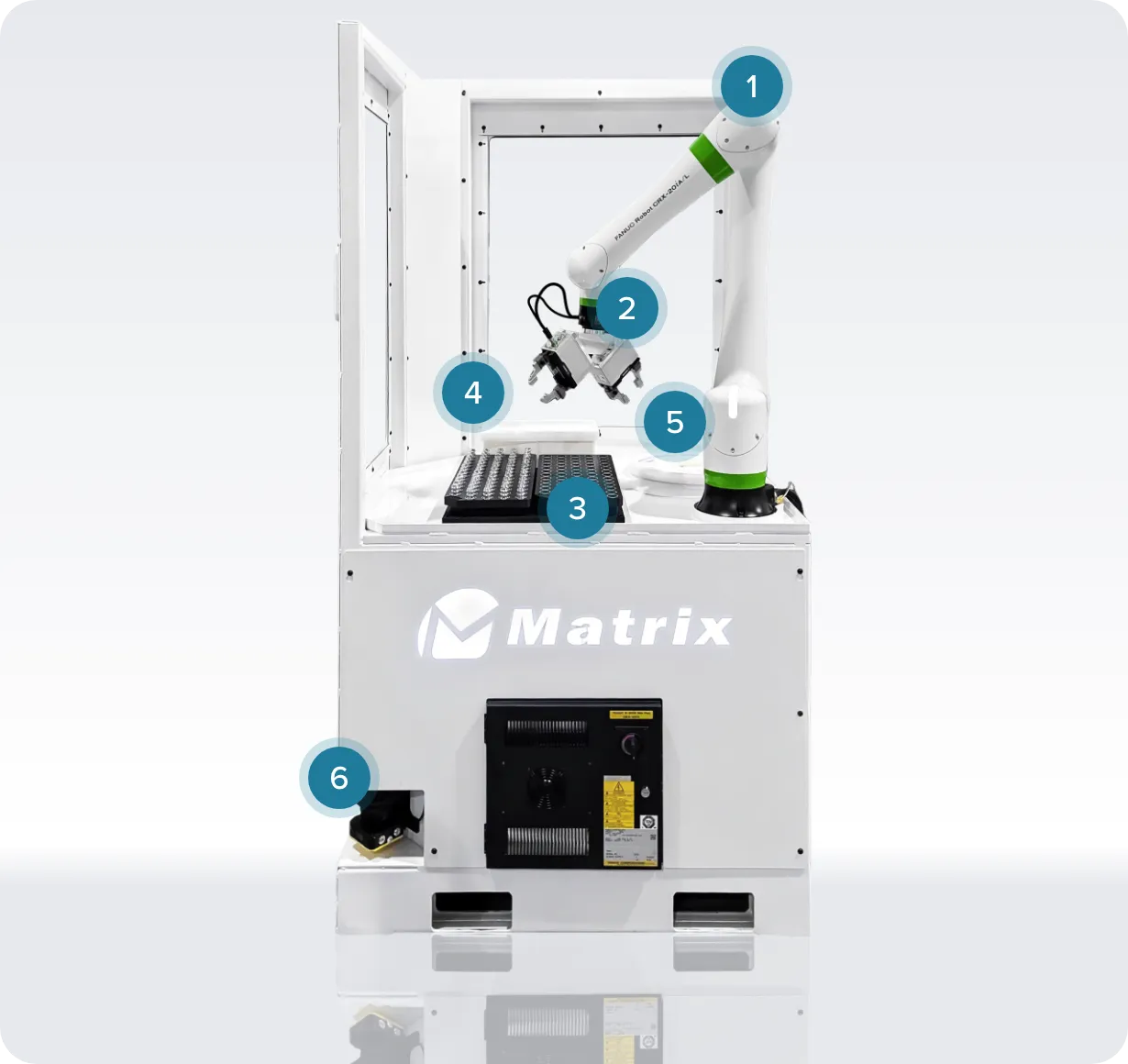

Annotated image of a Matrix industrial robot cell with six blue callouts marking different components (robot arm, gripper, work tray, base, controller, and safety area).
Six components doing real work

A Closer look at the systems that move, hold, clean, and dry every part.

1
FANUC CRX-20𝑖A/L Robot
20 kg payload, 1418 mm reach, fenceless operation.
2
Dual Schunk Electric Grippers
Quick-change fingers for rapid part-family swaps.
3
Part Staging Nests
Discrete raw and finished part positions.
4
Parts Wash Dunk Tank
Submersion station for in-process cleaning.
5
MiJet Blow-Off Station
Removes fluid and debris before staging.
6
SICK Safety Floor Scanner
Fenceless robot-rated perimeter monitoring.
Request a Quote

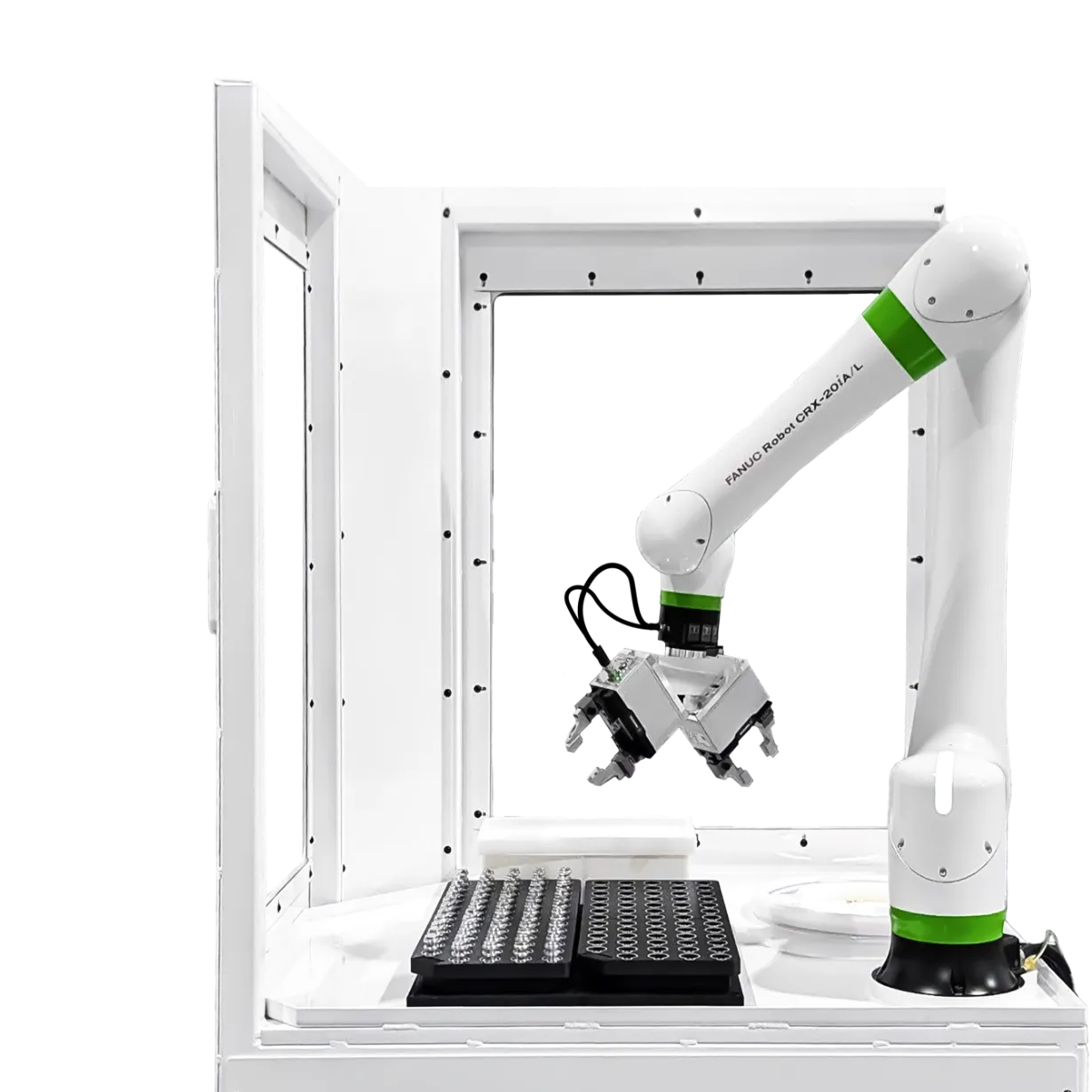

Industrial robotic arm inside a white lab enclosure, gripping a microplate rack at the workstation.
Tall pixel panda figure in black and white with a blue cap at the top corner.

Send us your part.
We’ll send you a cycle

Share the part you want tended and the machine tool that runs it. We’ll quote the M-Tend configuration, the EOAT, and the integration timeline – typically 8-12 weeks from PO.

Request a Quote Download Specs (PDF)
